LM-LUU series linear bearings are long-type linear bearings designed for smooth and precise linear motion in industrial equipment, automation systems and mechanical assemblies. The extended bearing length provides greater support and stable guidance for linear motion applications.

Built with a durable outer shell and precision ball circulation structure, our LM-LUU linear bearings provide low friction, smooth movement and reliable running performance when used with linear shafts.

We manufacture LM-LUU series linear bearings in a range of bore sizes and dimensions. Standard sizes, OEM requirements and bulk orders are available directly from our factory.

LM-LUU Series Linear Bearings – Models & Sizes

LM..LUU Long Type Linear Bearing Specifications

Dimensions are in mm. Load ratings are in N. Weight is in g.

Model	Ball Rows	Weight (g)	dr	D	L	L1	L2	D0	Eccentricity (μm)	Cr (N)	Cor (N)
LM3L	4	3	3	7	19	–	–	–	12	138	210
LM4L	4	4	4	8	23	–	–	–	12	176	254
LM5LUU	4	8.4	5	10	28	20.4	1.1	9.6	12	265	412
LM6LUU	4	16	6	12	35	27	1.1	11.5	15	323	530

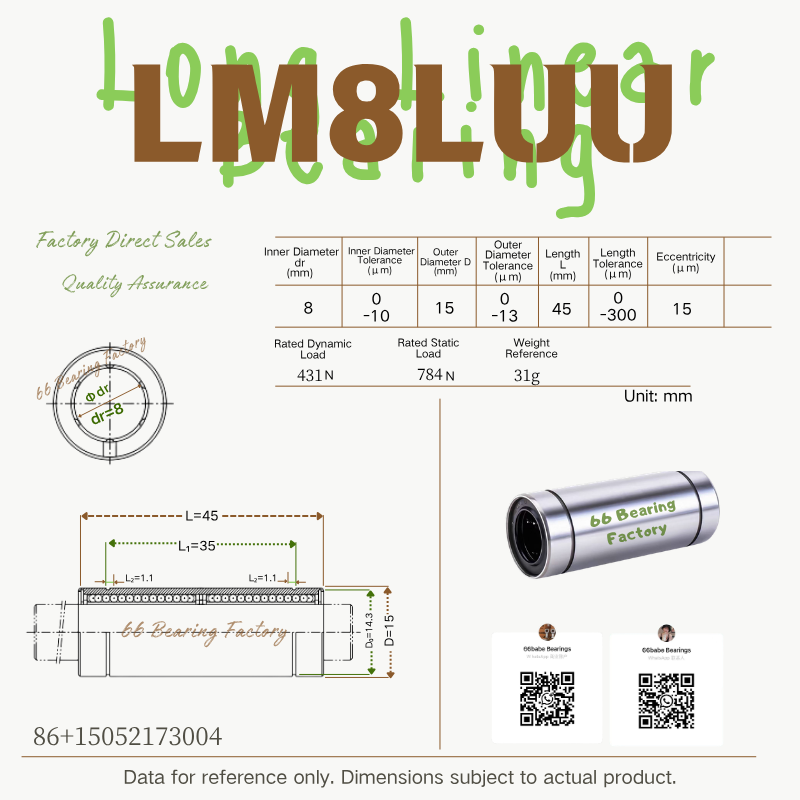

LM8LUU	4	31	8	15	45	35	1.1	14.3	15	431	784
LM10LUU	4	62	10	19	55	44	1.3	18	15	588	1100

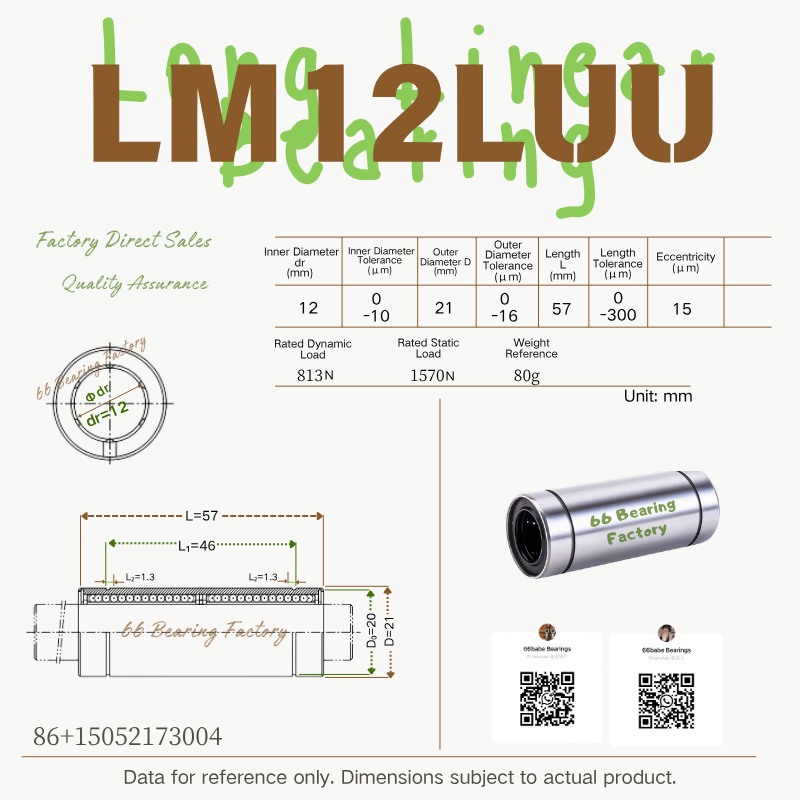

LM12LUU	4	80	12	21	57	46	1.3	20	15	813	1570

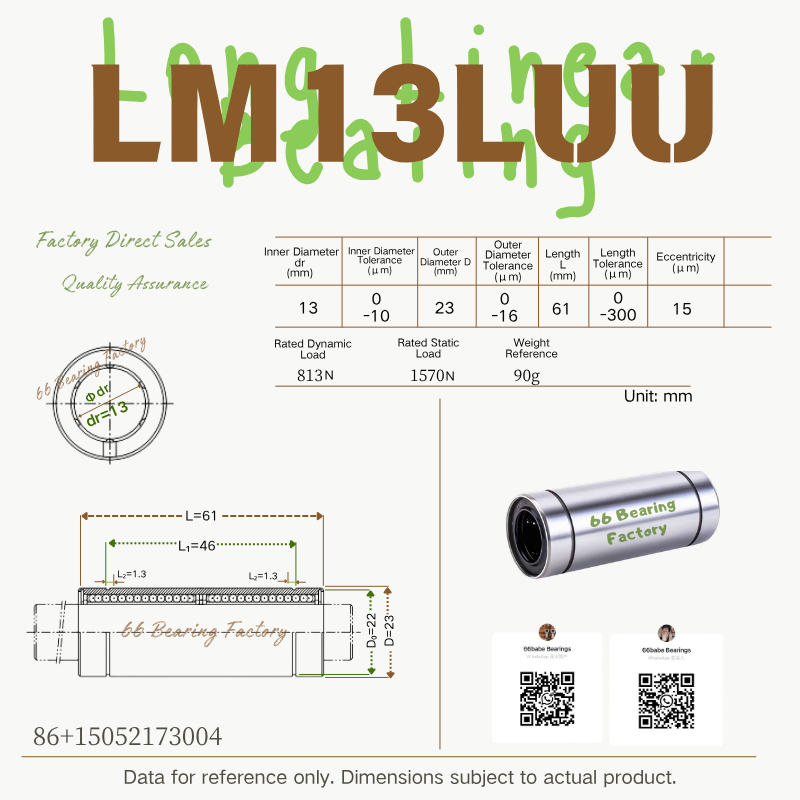

LM13LUU	4	90	13	23	61	46	1.3	22	15	813	1570

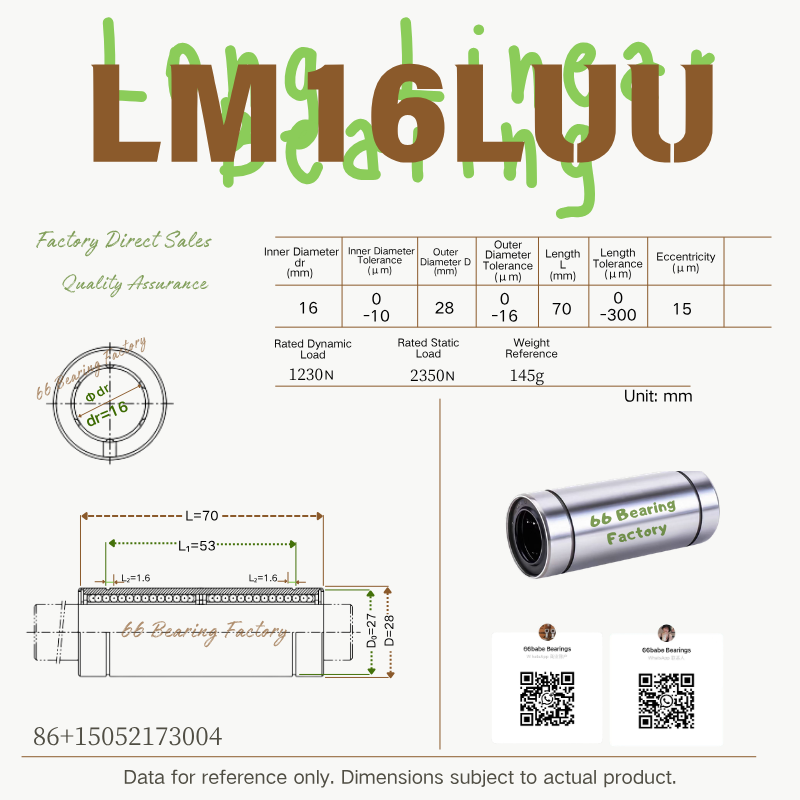

LM16LUU	5	145	16	28	70	53	1.6	27	15	1230	2350

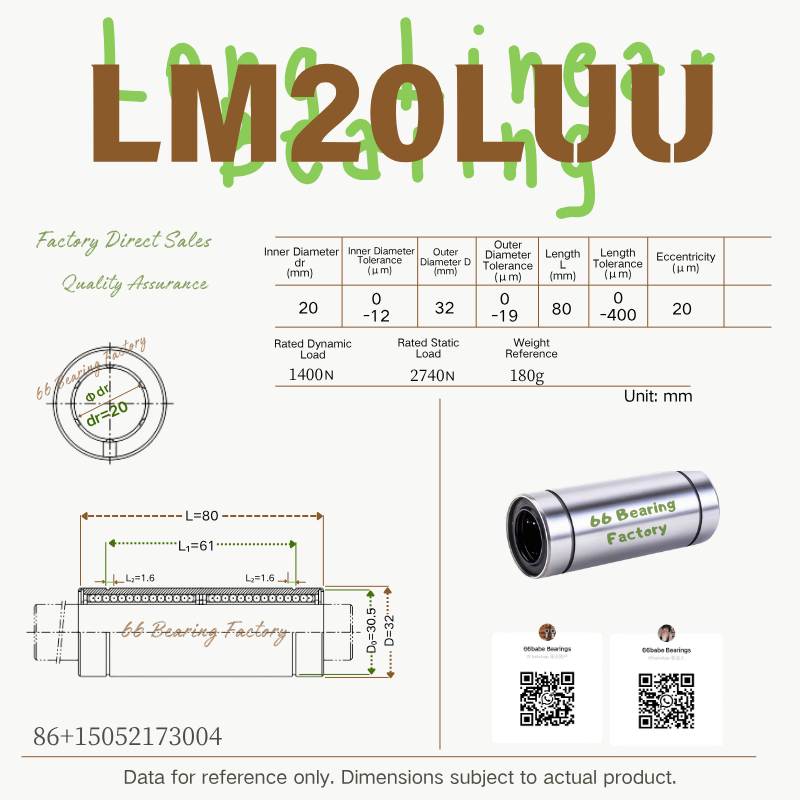

LM20LUU	5	180	20	32	80	61	1.6	30.5	20	1400	2740
LM25LUU	6	440	25	40	112	82	1.85	38	20	1560	3140
LM30LUU	6	480	30	45	123	89	1.85	43	20	2490	5490
LM35LUU	6	795	35	52	135	99	2.1	49	25	2650	6270
LM40LUU	6	1170	40	60	151	121	2.1	57	25	3430	8040
LM50LUU	6	3100	50	80	192	148	2.6	76.5	25	6080	15900

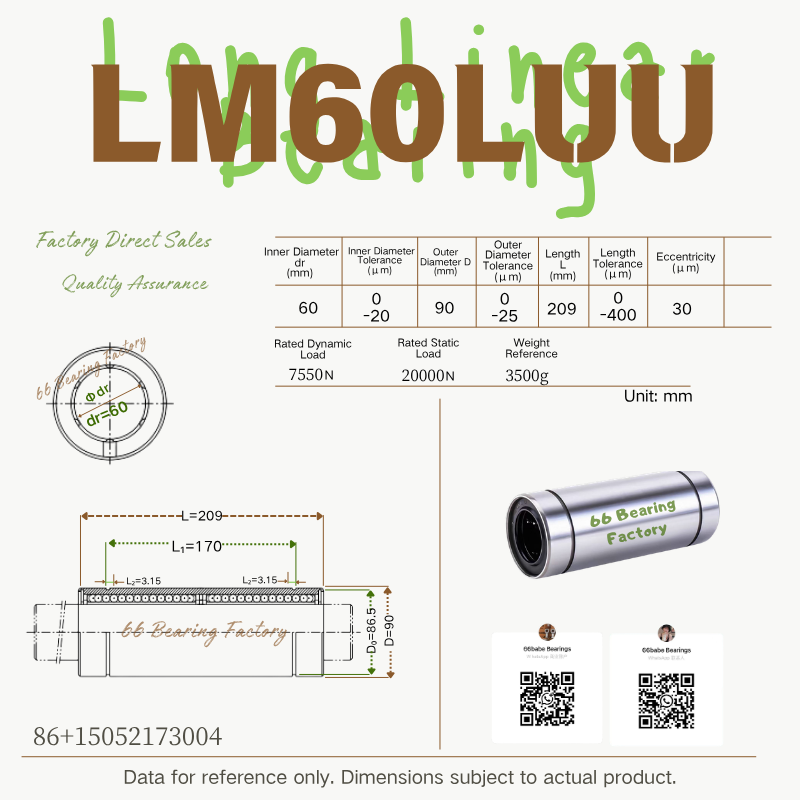

LM60LUU	6	3500	60	90	209	170	3.15	86.5	30	7550	20000
LM80LUU	6	7710	80	120	265	216	4.15	116	30	11500	32000

Need Dimensions or Bulk Pricing?

Send us the model number, quantity and destination. We’ll provide detailed dimensions, pricing and production information.
