LMH-LUU series long oval flange linear bearings are designed for smooth and precise linear motion in industrial machinery, automation equipment and mechanical systems. The extended oval flange design provides secure mounting, stable shaft support and increased bearing length for demanding linear motion applications.

Our LMH-LUU linear bearings are manufactured with a durable metal housing and precision ball circulation structure. When used with linear shafts, they provide low friction, smooth movement, reliable guidance and stable operating performance.

As a linear bearing manufacturer, we supply LMH-LUU series long oval flange linear bearings in multiple bore sizes and dimensions. Standard models, OEM requirements, customized specifications and bulk orders are available directly from our factory.

LMH-LUU Series Long Oval Flanged Linear Bearings – Models & Sizes

LMH..LUU Long Oval Flange Linear Bearing Specifications

Dimensions are in mm. Load ratings are in N. Weight is in g.

Model	Weight (g)	dr	D	L	D1	K	H	B	C	d1	d2	h	Eccentricity (μm)	Perpendicularity (μm)	Cr (N)	Cor (N)
LMH5LUU	21	5	10	28	26	16	5	18	–	3.5	6	3.1	15	15	261	412
LMH6LUU	28	6	12	35	28	18	5	20	–	3.5	6	3.1	15	15	323	529
LMH8LUU	47	8	15	45	32	21	5	24	–	3.5	6	3.1	15	15	431	784
LMH10LUU	90	10	19	55	40	25	6	29	–	4.5	7.5	4.1	15	15	588	1100
LMH12LUU	102	12	21	57	42	27	6	32	–	4.5	7.5	4.1	15	15	813	1570
LMH13LUU	123	13	23	61	43	29	6	33	–	4.5	7.5	4.1	15	15	813	1570
LMH16LUU	182	16	28	70	48	34	6	31	22	4.5	7.5	4.1	15	15	1230	2350
LMH20LUU	247	20	32	80	54	38	8	36	24	5.5	9	5.1	20	20	1400	2740
LMH25LUU	525	25	40	112	62	46	8	40	32	5.5	9	5.1	20	20	1560	3140
LMH30LUU	645	30	45	123	74	51	10	49	35	6.6	11	6.1	20	20	2490	5490
LMH35LUU	950	35	52	135	82	60	10	55	38	6.6	11	6.1	25	25	2650	6270
LMH40LUU	1450	40	60	151	96	70	13	64	45	9	14	8.1	25	25	3430	8040

Need Dimensions or Bulk Pricing?

Send us the model number, quantity and destination. We’ll provide detailed dimensions, pricing and production information.

Rod End Bearings（Heim Joints）

Spherical Plain Bearings

BALL JOINTS

LINEAR MOTION

LMH-LUU Series Long Oval Flanged Linear Bearings – Models & Sizes

LMH6LUU

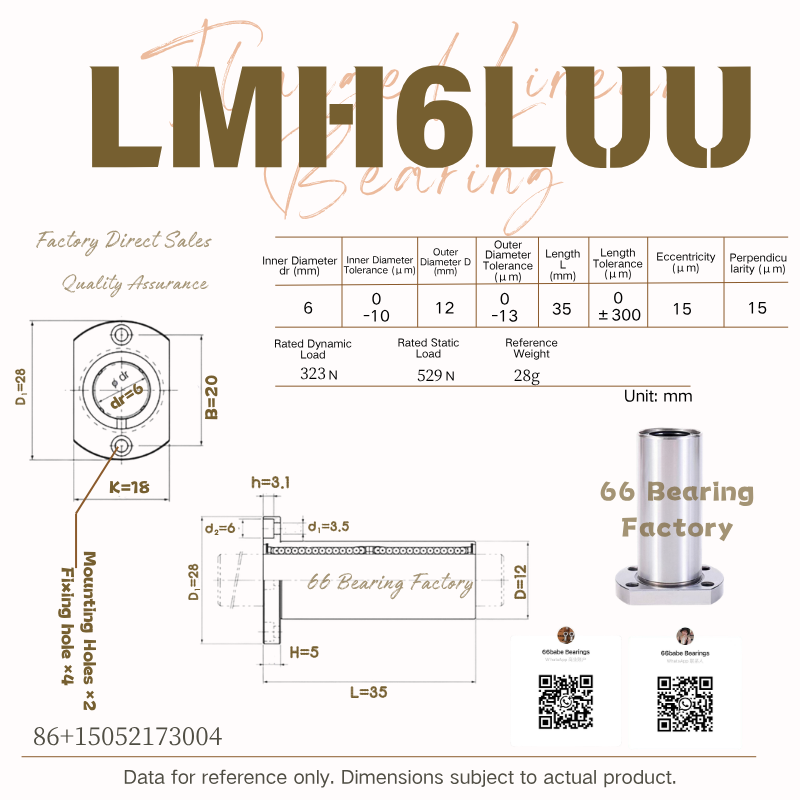

ID × OD × Length: 6 × 12 × 35 mm Long Oval Flanged Linear Bearing

LMH8LUU
ID × OD × Length: 8 × 15 × 45 mm Long Oval Flanged Linear Bearing

LMH10LUU
ID × OD × Length: 10 × 19 × 55 mm Long Oval Flanged Linear Bearing

LMH12LUU
ID × OD × Length: 12 × 21 × 57 mm Long Oval Flanged Linear Bearing

LMH13LUU
ID × OD × Length: 13 × 23 × 61 mm Long Oval Flanged Linear Bearing

LMH16LUU
ID × OD × Length: 16 × 28 × 70 mm Long Oval Flanged Linear Bearing

LMH20LUU
ID × OD × Length: 20 × 32 × 80 mm Long Oval Flanged Linear Bearing

LMH25LUU
ID × OD × Length: 25 × 40 × 112 mm Long Oval Flanged Linear Bearing

LMH30LUU
ID × OD × Length: 30 × 45 × 123 mm Long Oval Flanged Linear Bearing

LMH35LUU

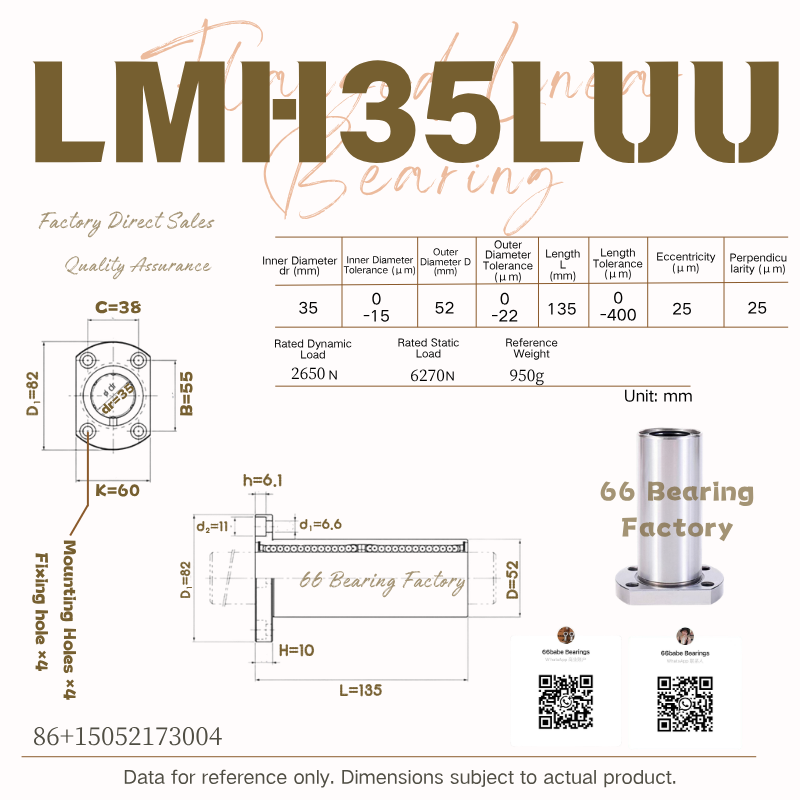

ID × OD × Length: 35 × 52 × 135 mm Long Oval Flanged Linear Bearing

LMH40LUU
ID × OD × Length: 40 × 60 × 151 mm Long Oval Flanged Linear Bearing

LMH50LUU
ID × OD × Length: 50 × 80 × 192 mm Long Oval Flanged Linear Bearing
