SQL..RS Ball Joint Rod Ends feature a bent-stud design with left-hand metric threads, providing a compact solution for linkage, positioning and motion connection applications. Standard thread sizes range from M5 to M22. Selected sizes are also available with fine thread pitches, including M12×1.25, M14×1.5 and M16×1.5.
Matching right-hand thread versions are available in the SQ..RS series, while SQZ..RS and SQZL..RS provide straight-stud configurations for right-hand and left-hand threads.
Dimensions are in mm. Weight is in kg. Load rating follows the corresponding right-hand source specification table; thread direction is left-hand.
| Model | Weight (kg) | d | d1 | d2 max | d3 max | l max | l1 max | l2 | L max | L1 max | L2 max | L3 max | D1 max | D2 max | D3 max | S1 | S2 | a | Load rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

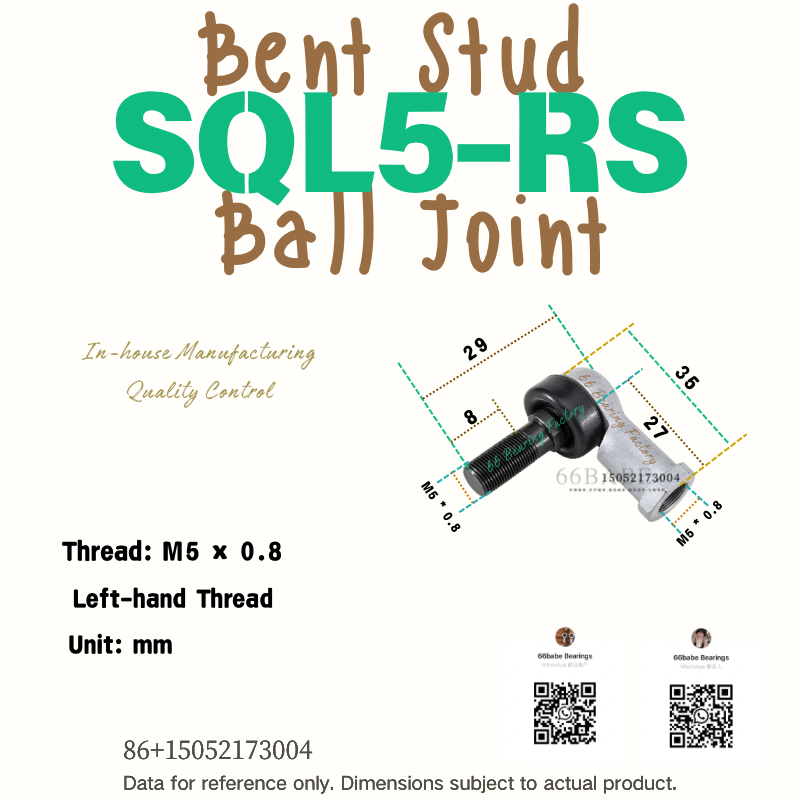

| SQL5-RS | 0.026 | 5 | M5×0.8 | 9 | 19 | 29 | 8 | 10 | 35 | 27 | 4 | 14 | 9 | 11 | 16 | 7 | 9 | 25 | 2.2 |

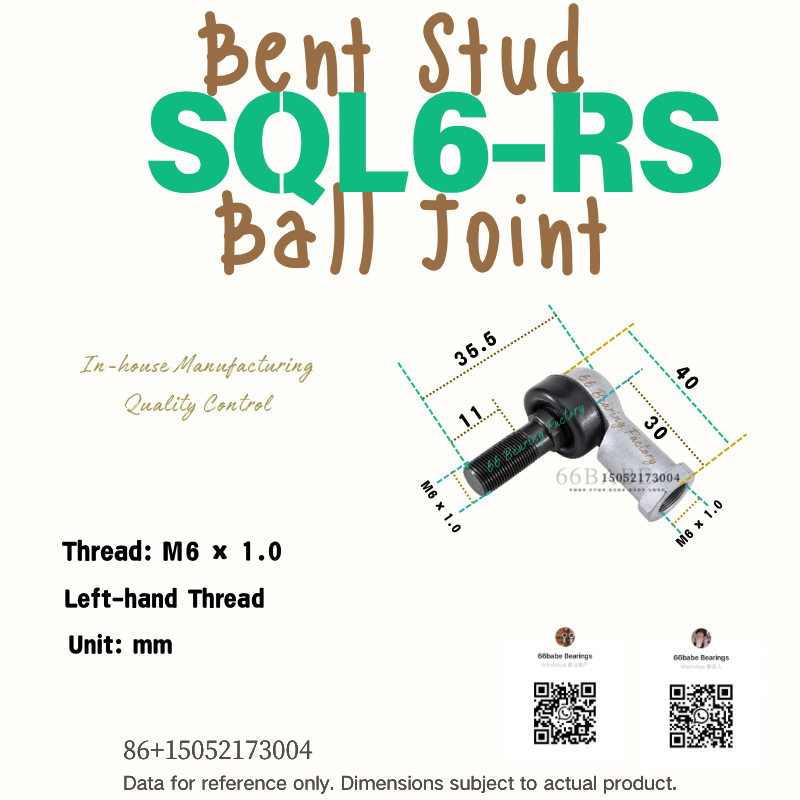

| SQL6-RS | 0.039 | 6 | M6×1 | 10 | 20 | 35.5 | 11 | 11 | 40 | 30 | 5 | 14 | 10 | 13 | 19 | 8 | 11 | 25 | 3.5 |

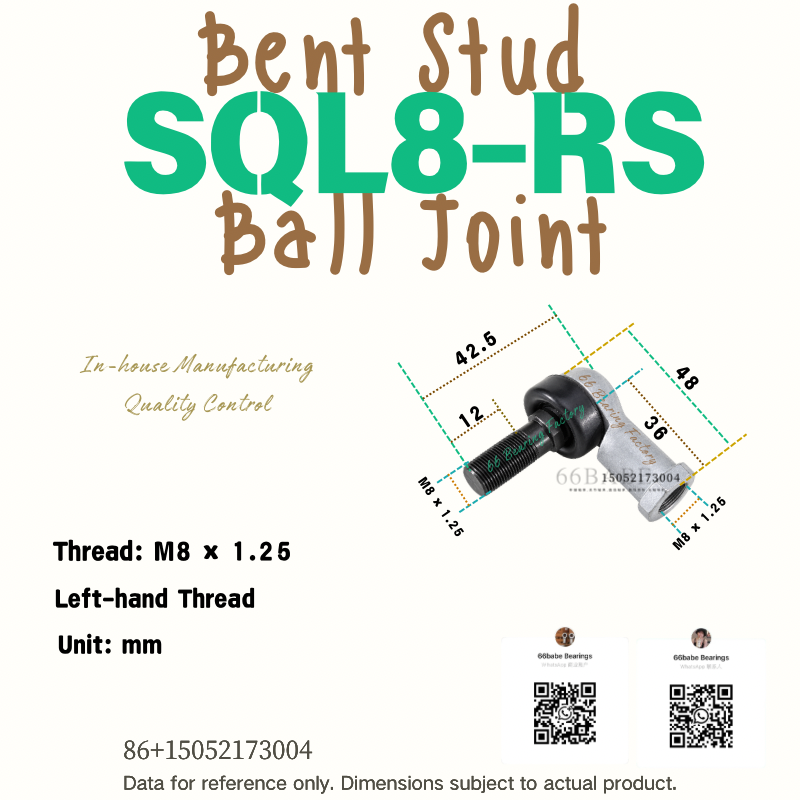

| SQL8-RS | 0.068 | 8 | M8×1.25 | 12 | 24 | 42.5 | 12 | 14 | 48 | 36 | 5 | 17 | 12.5 | 16 | 23 | 10 | 14 | 25 | 6.6 |
| SQL10-RS-1 | 0.112 | 10 | M10×1.25 | 14 | 30 | 50.5 | 15 | 17 | 57 | 43 | 6.5 | 21 | 15 | 19 | 27 | 11 | 17 | 25 | 10 |

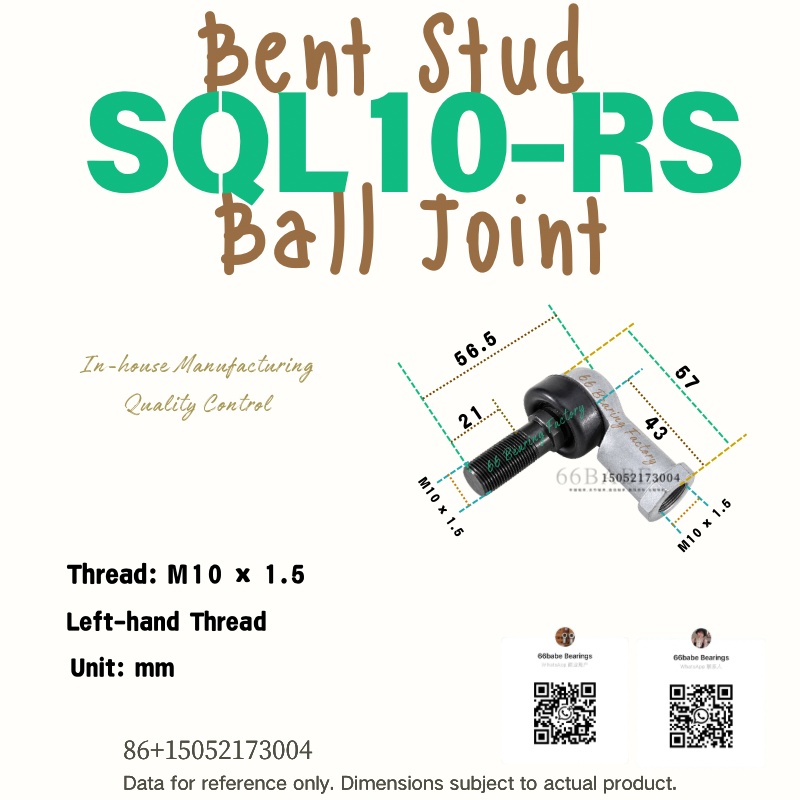

| SQL10-RS | 0.112 | 10 | M10×1.5 | 14 | 30 | 56.5 | 21 | 17 | 57 | 43 | 6.5 | 21 | 15 | 19 | 27 | 11 | 17 | 25 | 10 |

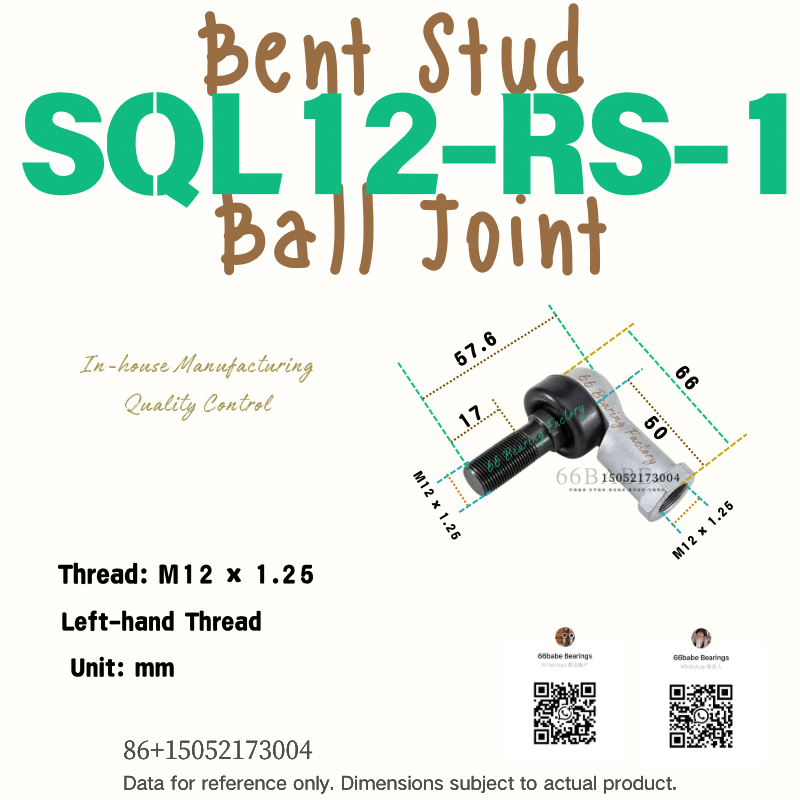

| SQL12-RS-1 | 0.164 | 12 | M12×1.25 | 17 | 32 | 57.5 | 17 | 19 | 66 | 50 | 6.5 | 25 | 17.5 | 22 | 31 | 15 | 19 | 25 | 16 |
| SQL12-RS | 0.164 | 12 | M12×1.75 | 17 | 32 | 64.5 | 24 | 19 | 66 | 50 | 6.5 | 25 | 17.5 | 22 | 31 | 15 | 19 | 25 | 16 |

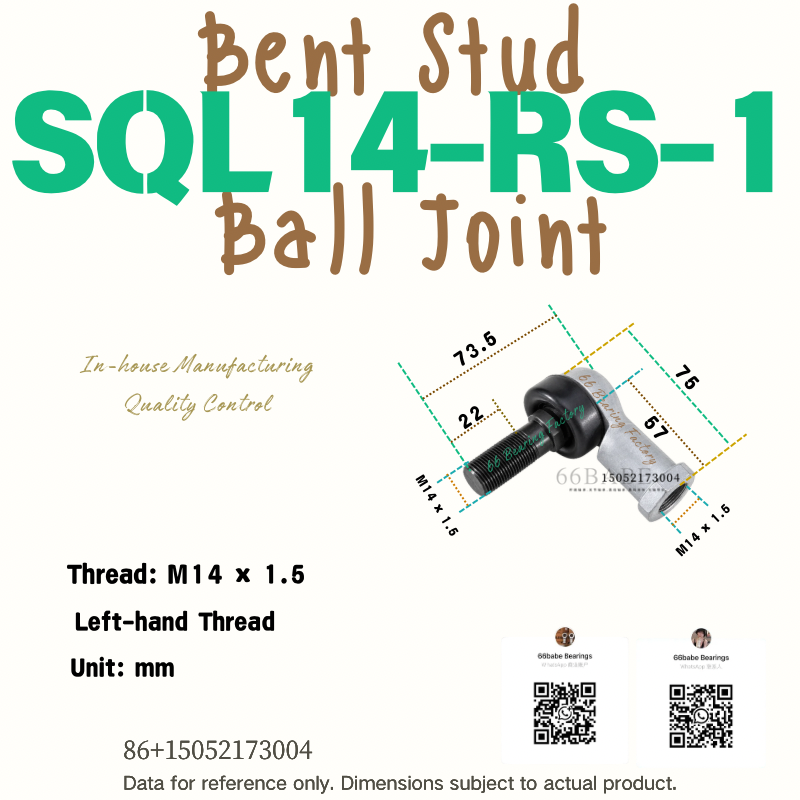

| SQL14-RS-1 | 0.254 | 14 | M14×1.5 | 19 | 38 | 73.5 | 22 | 21.5 | 75 | 57 | 8 | 26 | 20 | 25 | 35 | 17 | 22 | 25 | 19 |

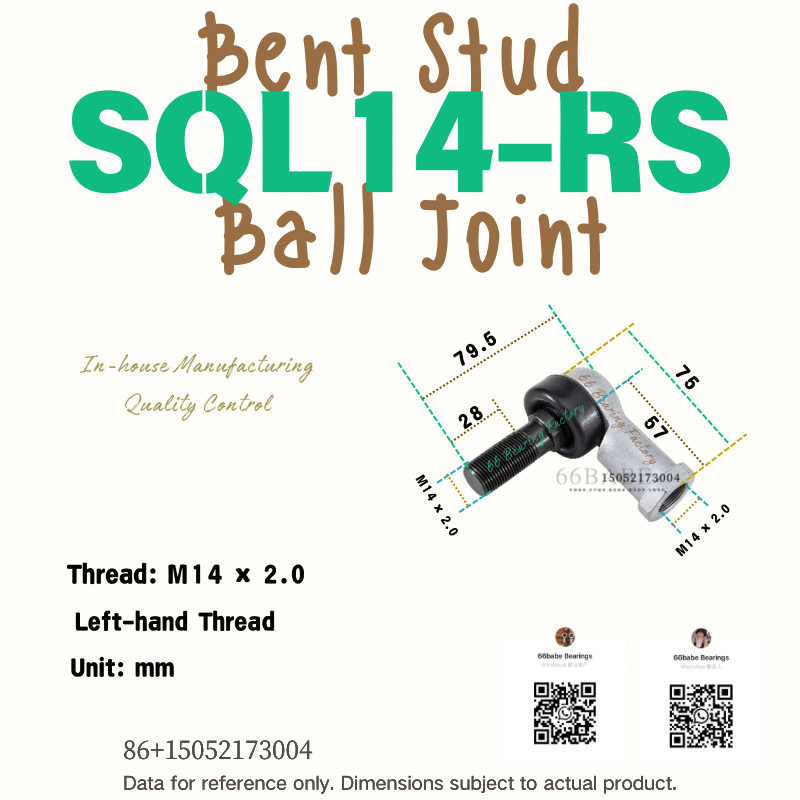

| SQL14-RS | 0.254 | 14 | M14×2 | 19 | 38 | 79.5 | 28 | 21.5 | 75 | 57 | 8 | 26 | 20 | 25 | 35 | 17 | 22 | 25 | 19 |
| SQL16-RS-1 | 0.336 | 16 | M16×1.5 | 22 | 44 | 79.5 | 23 | 23.5 | 84 | 64 | 8 | 32 | 22 | 27 | 39 | 19 | 22 | 20 | 26 |
| SQL16-RS | 0.336 | 16 | M16×2 | 22 | 44 | 85.5 | 29 | 23.5 | 84 | 64 | 8 | 32 | 22 | 27 | 39 | 19 | 22 | 20 | 26 |

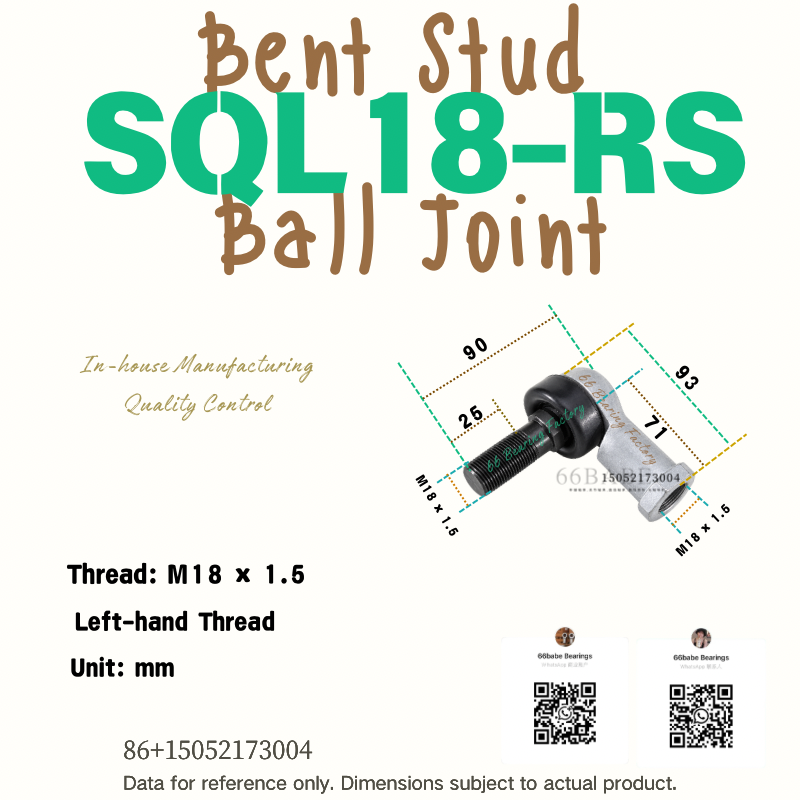

| SQL18-RS | 0.464 | 18 | M18×1.5 | 23 | 45 | 90 | 25 | 26.5 | 93 | 71 | 10 | 34 | 25 | 31 | 44 | 20 | 27 | 20 | 33 |
| SQL20-RS | 0.538 | 20 | M20×1.5 | 27 | 50 | 90 | 25 | 27 | 99 | 77 | 10 | 35 | 27.5 | 34 | 44 | 24 | 30 | 20 | 45 |
| SQL22-RS | 0.713 | 22 | M22×1.5 | 27 | 52 | 95 | 26 | 28 | 109 | 84 | 12 | 41 | 30 | 37 | 50 | 24 | 32 | 16 | 48 |
Send us the model number, quantity and destination. We’ll provide detailed dimensions, pricing and production information.
