LM series linear bearings are designed for smooth and precise linear motion in industrial equipment, automation systems and mechanical assemblies. They provide stable guidance with low friction and reliable running performance.

Made with a durable outer shell and precision ball circulation structure, our LM linear bearings offer good wear resistance, smooth movement and consistent performance when used with linear shafts.

We manufacture LM series linear bearings in a wide range of bore sizes and dimensions. Standard sizes, OEM requirements and bulk orders are available directly from our factory.

LM Series Linear Bearings – Models & Sizes

LM..UU Standard Linear Bearing Specifications

Dimensions are in mm. Load ratings are in N. Weight is in g.

Model	Ball Rows	Weight (g)	dr	D	L	L1	L2	D0	Ecc. Precision (μm)	Ecc. High (μm)	Max Radial Clearance (μm)	Cr (N)	Cor (N)
LM3	4	1.35	3	7	10	–	–	–	4	8	-3	69	105
LM4	4	1.9	4	8	12	–	–	–	4	8	-3	88	127
LM5UU	4	4	5	10	15	10.2	1.1	9.6	4	8	-3	167	206
LM6UU	4	7.6	6	12	19	13.5	1.1	11.5	8	12	-3	206	265
LM8SUU	4	10.4	8	15	17	11.5	1.1	14.3	8	12	-3	176	216
LM8UU	4	15	8	15	24	17.5	1.1	14.3	8	12	-3	274	392
LM10UU	4	29.5	10	19	29	22	1.3	18	8	12	-4	372	549
LM12UU	4	31.5	12	21	30	23	1.3	20	8	12	-4	510	784
LM13UU	4	43	13	23	32	23	1.3	22	8	12	-4	510	784
LM16UU	5	69	16	28	37	26.5	1.6	27	8	12	-6	774	1180
LM20UU	5	87	20	32	42	30.5	1.6	30.5	10	15	-6	882	1370
LM25UU	6	220	25	40	59	41	1.85	38	10	15	-6	980	1570
LM30UU	6	250	30	45	64	44.5	1.85	43	10	15	-8	1570	2740
LM35UU	6	390	35	52	70	49.5	2.1	49	12	20	-8	1670	3140
LM40UU	6	585	40	60	80	60.5	2.1	57	12	20	-10	2160	4020
LM50UU	6	1580	50	80	100	74	2.6	76.5	12	20	-13	3820	7940
LM60UU	6	1860	60	90	110	85	3.15	86.5	17	25	-13	4700	10000
LM80UU	6	4420	80	120	140	105.5	4.15	116	17	25	-20	7350	16000
LM100UU	6	8600	100	150	175	125.5	4.15	145	20	30	-20	14100	34800
LM120UU	8	15000	120	180	200	158.6	4.15	175	20	30	-25	16400	40000
LM150UU	8	20250	150	210	240	170.6	5.15	204	25	40	-25	21100	54300
LM180UU	8	33945	180	260	280	210.6	5.15	254	30	40	-30	25800	59000
LM200UU	8	42360	200	280	320	250.6	5.15	274	30	40	-30	28100	61300

Need Dimensions or Bulk Pricing?

Send us the model number, quantity and destination. We’ll provide detailed dimensions, pricing and production information.

Rod End Bearings（Heim Joints）

Spherical Plain Bearings

BALL JOINTS

LINEAR MOTION

LM Series Linear Bearings – Models & Sizes

LM6UU
ID × OD × Length: 6 × 12 × 19 mm
Standard Linear Bearing

LM8UU
ID × OD × Length: 8 × 15 × 24 mm Standard Linear Bearing

LM10UU
ID × OD × Length: 10 × 19 × 29 mm Standard Linear Bearing

LM12UU
ID × OD × Length: 12 × 21 × 30 mm Standard Linear Bearing

LM13UU
ID × OD × Length: 13 × 23 × 32 mm Standard Linear Bearing

LM16UU
ID × OD × Length: 16 × 28 × 37 mm Standard Linear Bearing

LM20UU
ID × OD × Length: 20 × 32 × 42 mm Standard Linear Bearing

LM25UU
ID × OD × Length: 25 × 40 × 59 mm Standard Linear Bearing

LM30UU
ID × OD × Length: 30 × 45 × 64 mm Standard Linear Bearing

LM35UU
ID × OD × Length: 35 × 52 × 70 mm Standard Linear Bearing

LM40UU
ID × OD × Length: 40 × 60 × 80 mm Standard Linear Bearing

LM50UU
ID × OD × Length: 50 × 80 × 100 mm Standard Linear Bearing

LM60UU
ID × OD × Length: 60 × 90 × 110 mm Standard Linear Bearing

LM80UU
ID × OD × Length: 80 × 120 × 140 mm Standard Linear Bearing

LM..UU Standard Linear Bearing Specifications

Need Dimensions or Bulk Pricing?

Rod End Bearings（Heim Joints）

Spherical Plain Bearings

BALL JOINTS

LINEAR MOTION

LM Series Linear Bearings – Models & Sizes

LM6UU ID × OD × Length: 6 × 12 × 19 mm Standard Linear Bearing

LM8UU ID × OD × Length: 8 × 15 × 24 mm Standard Linear Bearing

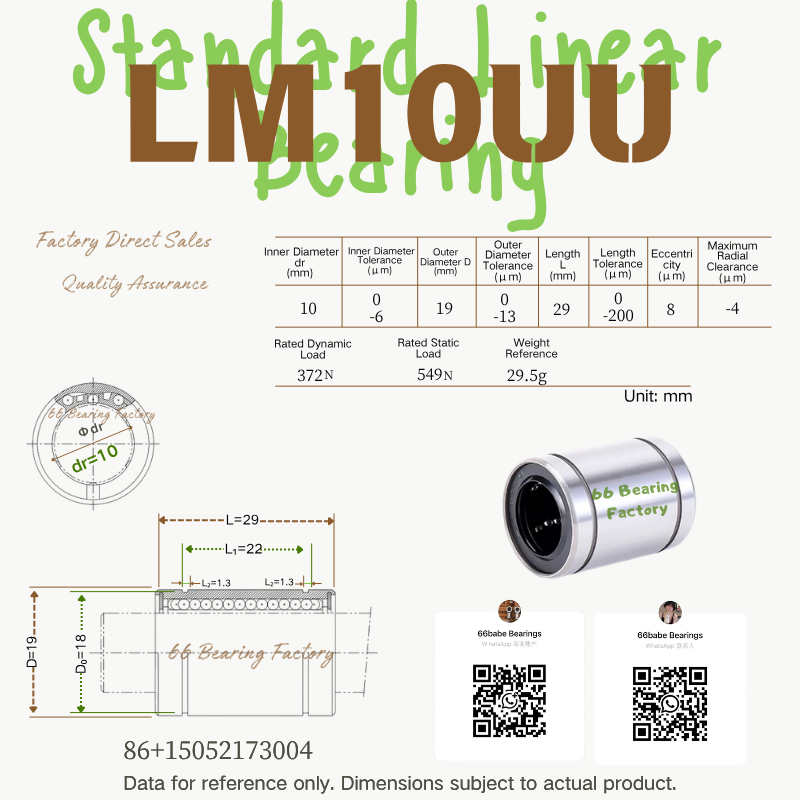

LM10UU ID × OD × Length: 10 × 19 × 29 mm Standard Linear Bearing

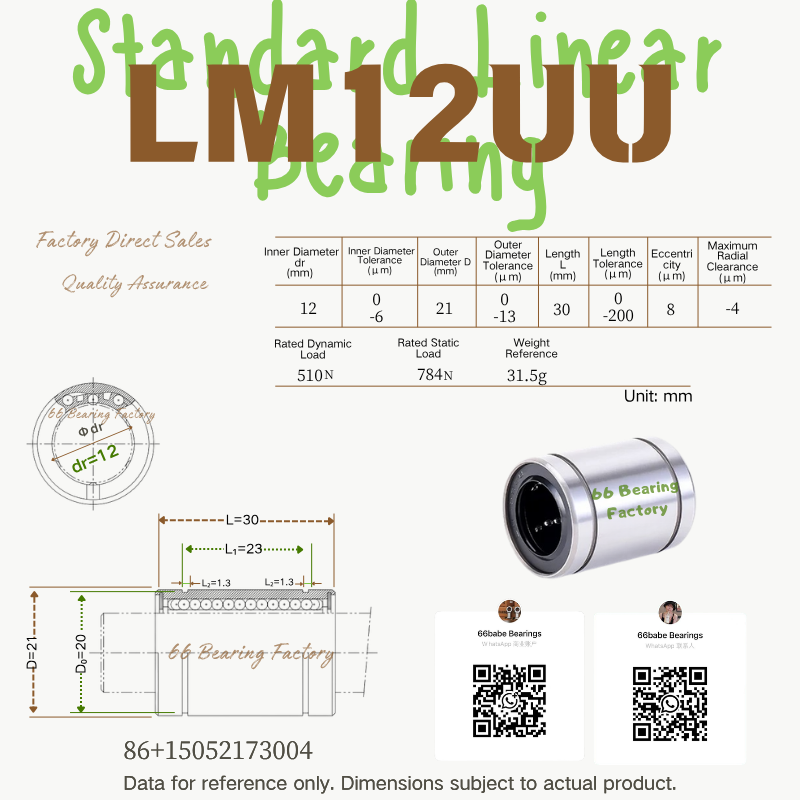

LM12UU ID × OD × Length: 12 × 21 × 30 mm Standard Linear Bearing

LM13UU ID × OD × Length: 13 × 23 × 32 mm Standard Linear Bearing

LM16UU ID × OD × Length: 16 × 28 × 37 mm Standard Linear Bearing

LM20UU ID × OD × Length: 20 × 32 × 42 mm Standard Linear Bearing

LM25UU ID × OD × Length: 25 × 40 × 59 mm Standard Linear Bearing

LM30UU ID × OD × Length: 30 × 45 × 64 mm Standard Linear Bearing

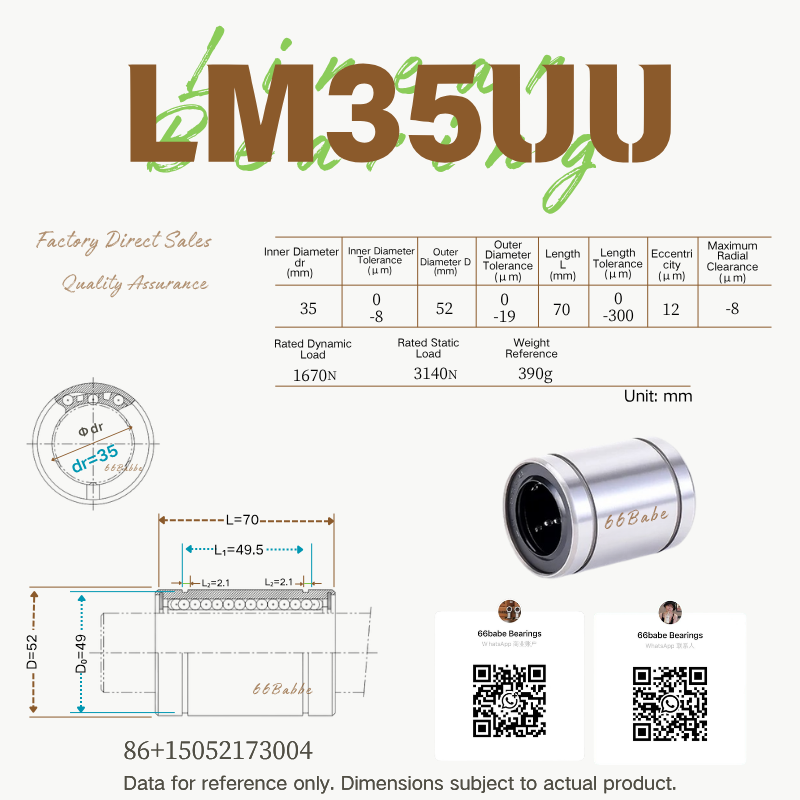

LM35UU ID × OD × Length: 35 × 52 × 70 mm Standard Linear Bearing

LM40UU ID × OD × Length: 40 × 60 × 80 mm Standard Linear Bearing

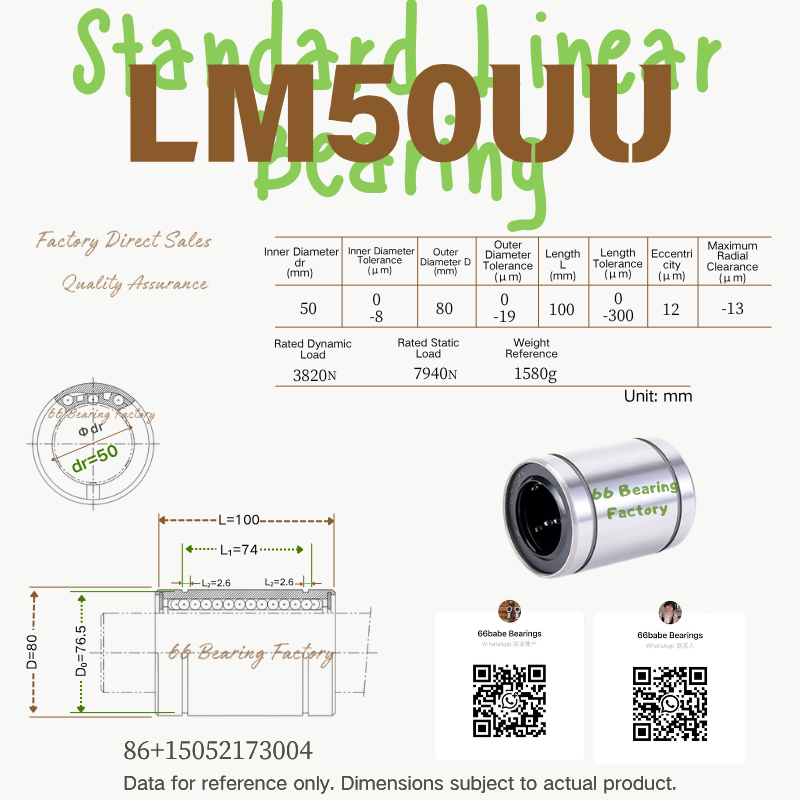

LM50UU ID × OD × Length: 50 × 80 × 100 mm Standard Linear Bearing
