SBR-LUU series linear bearing blocks are long-type linear bearing units designed for smooth linear motion, stable guidance and enhanced support in industrial equipment and automation systems.
Built with a durable aluminum housing and integrated long linear bearing, our SBR-LUU blocks provide low friction, stable running performance and increased support length for demanding linear motion applications.
We manufacture SBR-LUU linear bearing blocks in a wide range of shaft sizes. When replacing an SBR-LUU block, verify the shaft diameter, supported-rail profile, overall housing dimensions, mounting-hole spacing and block length. The longer housing changes the mounting footprint compared with standard-length SBR blocks, so matching shaft diameter alone is not enough. Standard sizes, drawing-based OEM requirements and bulk orders are available directly from our factory; send the model code, quantity and installation dimensions for confirmation.
Dimensions are in mm. Load ratings are in N. Weight is in g.
| Model | Shaft Ø | Cr | Cor | Weight | D | h2 | H | E | θ | W | G | A | B | T | M | S1 | J | K | S2 | C | h1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

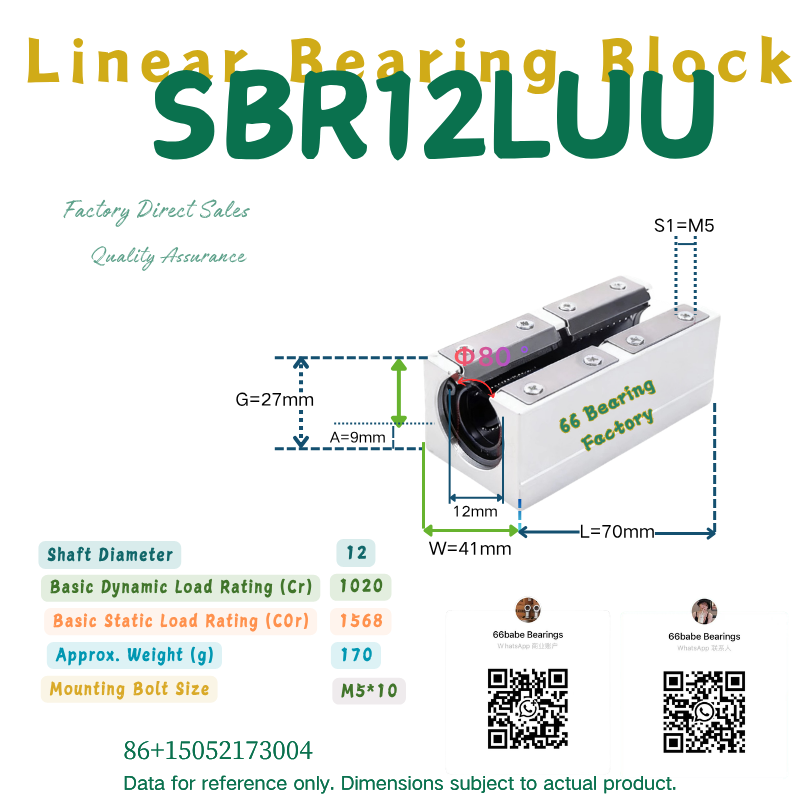

| SBR12LUU | 12 | 1020 | 1568 | 170 | 20 | 17 | 37.4 | 3 | 80° | 40 | 27 | 8 | 34 | 4.5 | 70 | M5×10 | 28 | 46 | Φ4.5 | 25 | 8 |
| SBR16LUU | 16 | 1548 | 2360 | 300 | 22.5 | 20 | 45 | 2.5 | 80° | 45 | 33 | 9 | 40 | 5 | 85 | M5×12 | 32 | 60 | Φ5.5 | 30 | 11 |
| SBR20LUU | 20 | 1764 | 2740 | 400 | 24 | 23 | 50 | 1.5 | 60° | 48 | 39 | 11 | 45 | 5 | 96 | M6×12 | 35 | 70 | Φ5.5 | 30 | 11 |
| SBR25LUU | 25 | 1960 | 3140 | 900 | 30 | 27 | 60 | 2.5 | 50° | 60 | 47 | 14 | 55 | 6 | 130 | M6×12 | 40 | 100 | Φ6.6 | 35 | 12 |

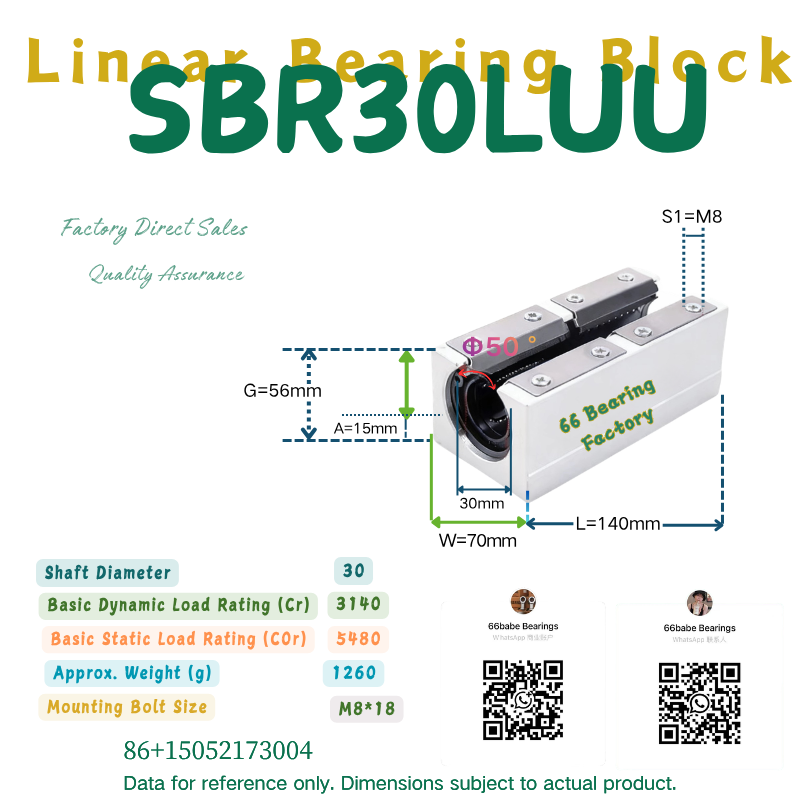

| SBR30LUU | 30 | 3140 | 5480 | 1260 | 35 | 33 | 70 | 5 | 50° | 70 | 56 | 15 | 60 | 7 | 140 | M8×18 | 50 | 110 | Φ6.6 | 40 | 15 |

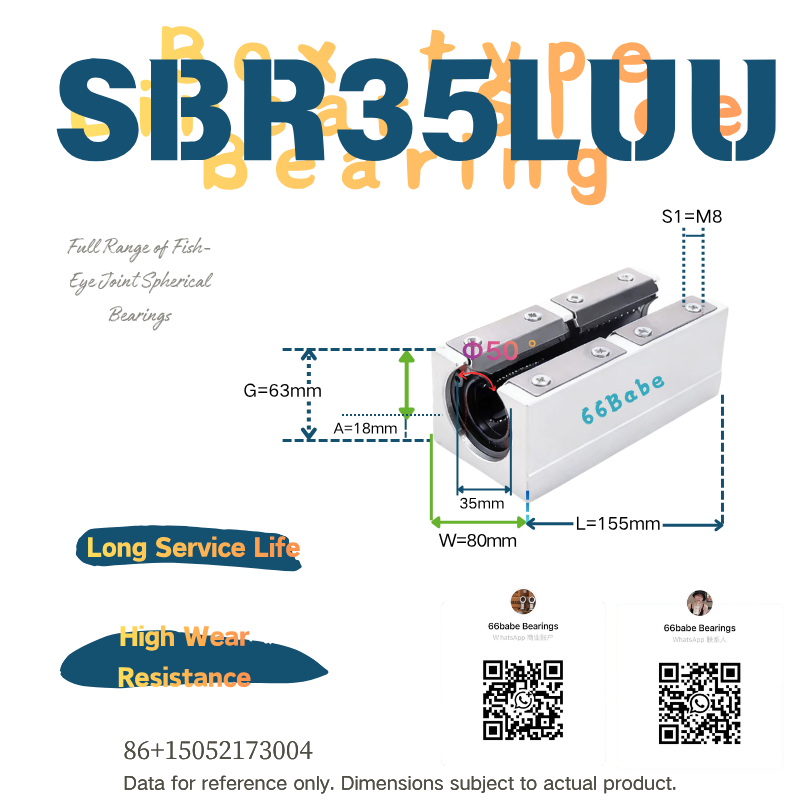

| SBR35LUU | 35 | 3340 | 6260 | 1840 | 40 | 37 | 80 | 7.5 | 50° | 80 | 63 | 18 | 65 | 8 | 155 | M8×18 | 55 | 130 | Φ9.0 | 45 | 17 |
| SBR40LUU | 40 | 4320 | 8040 | 2660 | 45 | 42 | 90 | 7.5 | 50° | 90 | 72 | 20 | 75 | 9 | 175 | M10×20 | 65 | 140 | Φ9.0 | 55 | 20 |

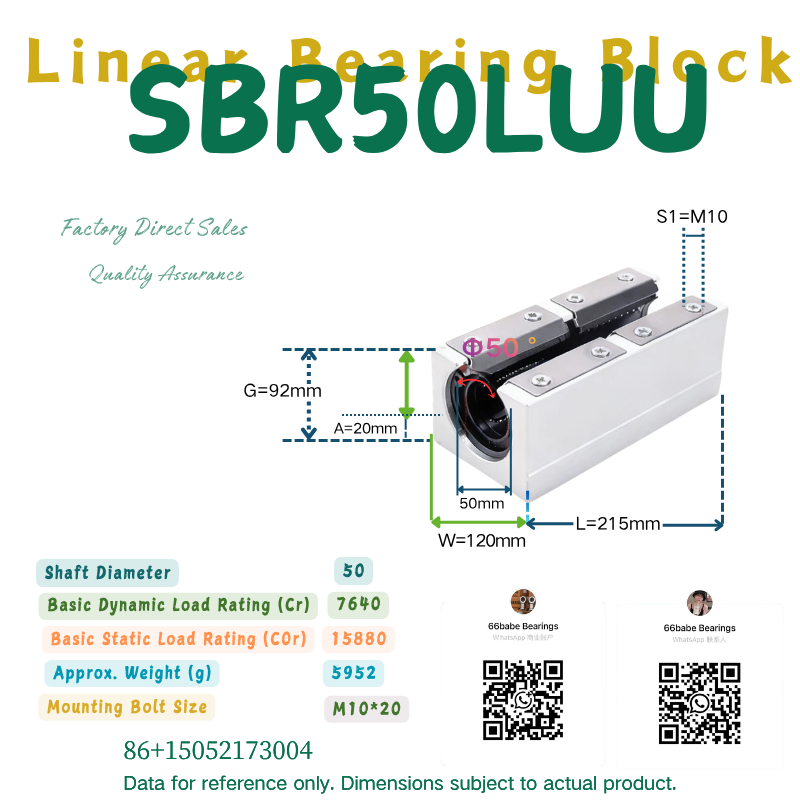

| SBR50LUU | 50 | 7640 | 15880 | 5952 | 60 | 53 | 115 | 12.5 | 50° | 120 | 92 | 25 | 95 | 11 | 215 | M10×20 | 94 | 175 | Φ11 | 70 | 25 |
Send us the model number, quantity and destination. We’ll provide detailed dimensions, pricing and production information.
