SQZ..RS Ball Joint Rod Ends feature a straight-stud design with right-hand metric threads, providing a compact solution for linkage, positioning and motion connection applications. Standard thread sizes range from M5 to M22. Selected sizes are also available with fine thread pitches, including M10×1.25, M12×1.25, M14×1.5 and M16×1.5.
Matching left-hand thread versions are available in the SQZL..RS series, while SQ..RS and SQL..RS provide bent-stud configurations for right-hand and left-hand threads.
Dimensions are in mm. Weight is in kg. Load rating follows the source specification table.
| Model | Weight (kg) | d | d1 | d2 mix | d3 mix | l1 mix | l2 | L max | L1 | L2 max | L3 mix | D1 max | D2 max | D3 max | S1 | S2 | a | Load Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

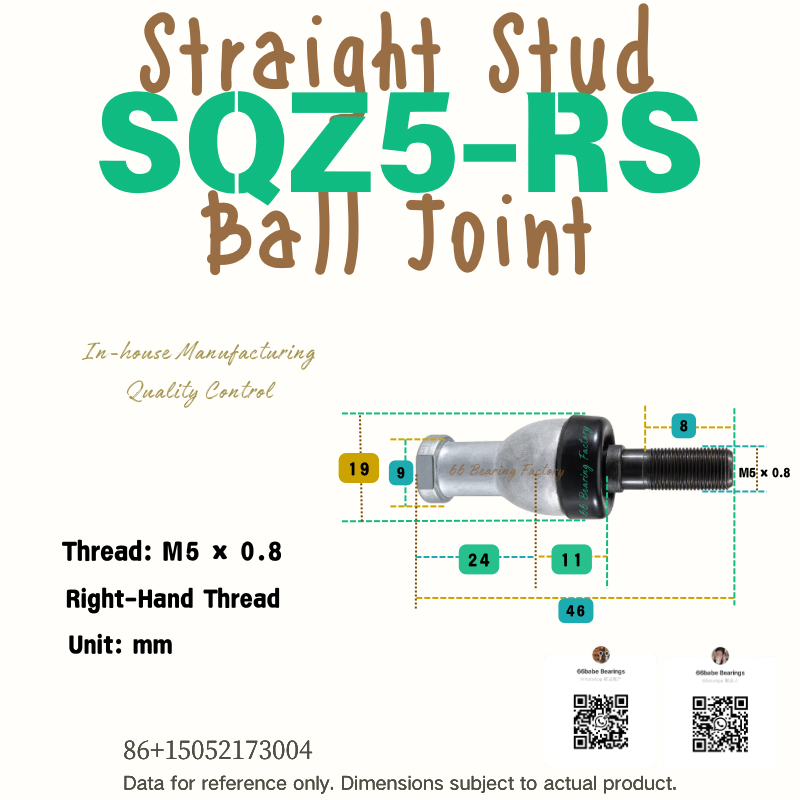

| SQZ5-RS | 0.025 | 5 | M5×0.8 | 9 | 19 | 8 | 11 | 46 | 24 | 4 | 12 | 9 | 11 | 17 | 7 | 9 | 15 | 2.8 |

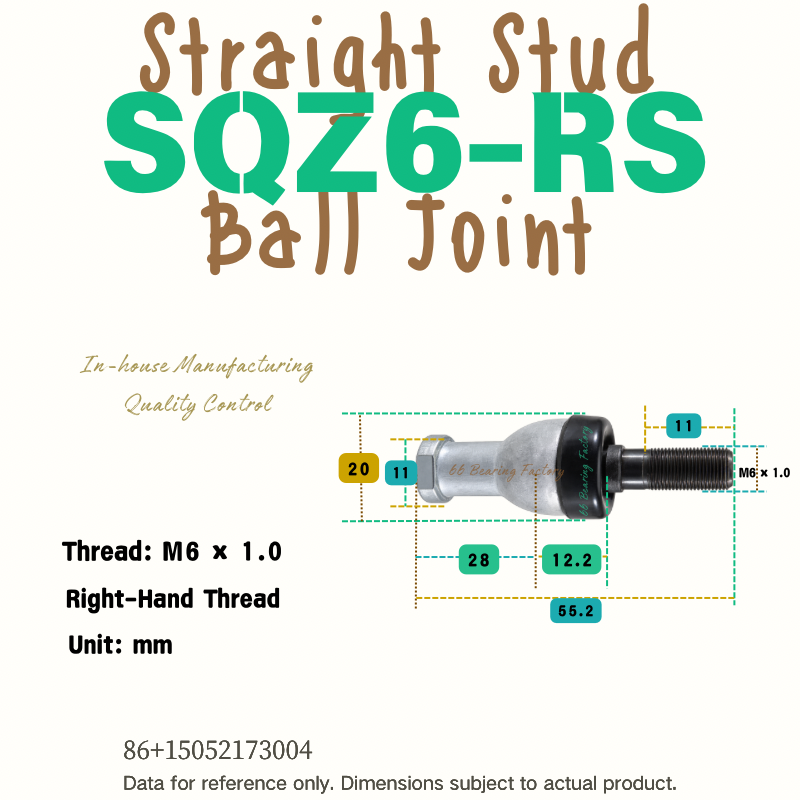

| SQZ6-RS | 0.041 | 6 | M6×1 | 10 | 20 | 11 | 12.2 | 55.2 | 28 | 5 | 15 | 10 | 13 | 20 | 8 | 11 | 15 | 3.7 |

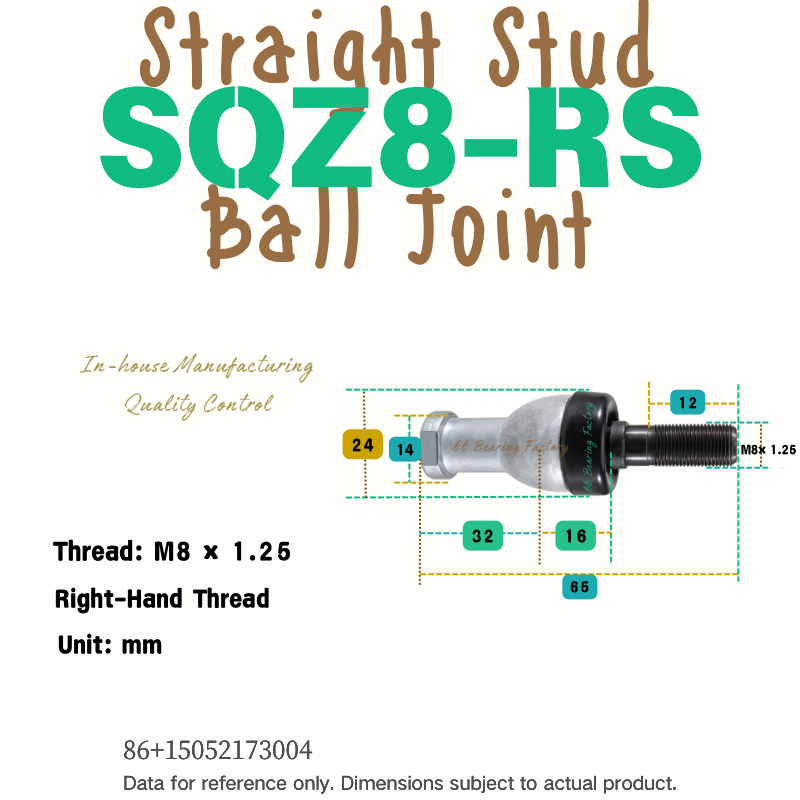

| SQZ8-RS | 0.075 | 8 | M8×1.25 | 12 | 24 | 12 | 16 | 65 | 32 | 5 | 16 | 12.5 | 16 | 24 | 10 | 14 | 15 | 5.8 |

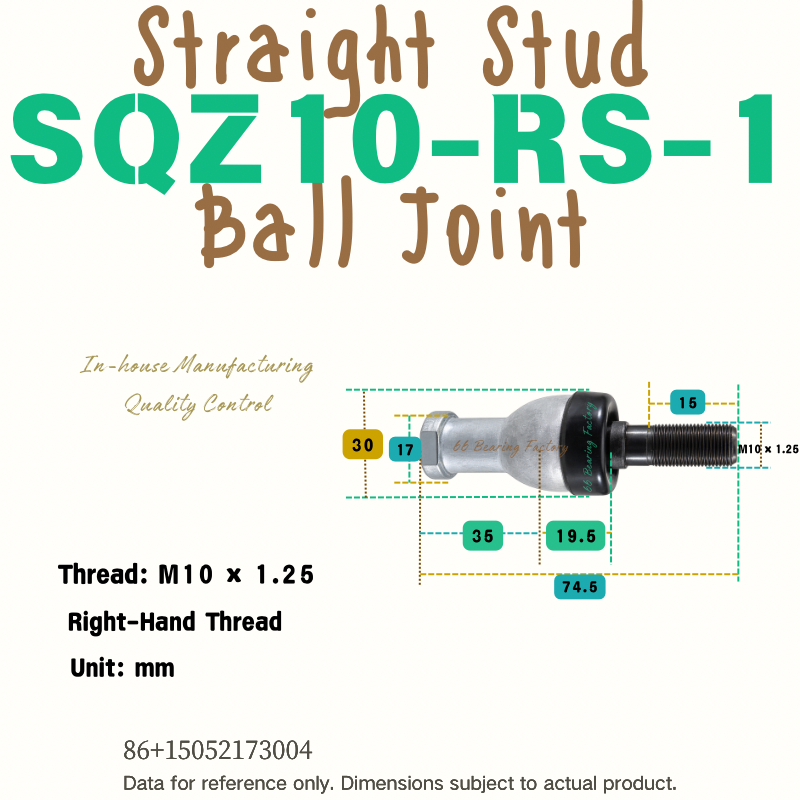

| SQZ10-RS-1 | 0.12 | 10 | M10×1.25 | 14 | 30 | 15 | 19.5 | 74.5 | 35 | 6.5 | 18 | 15 | 19 | 28 | 11 | 17 | 15 | 8.4 |

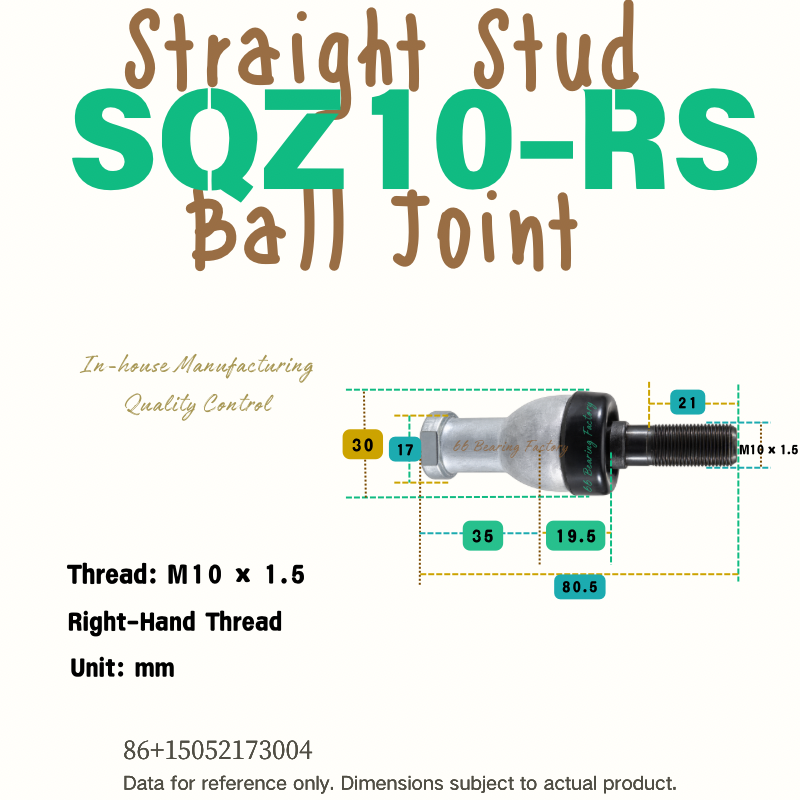

| SQZ10-RS | 0.12 | 10 | M10×1.5 | 14 | 30 | 21 | 19.5 | 80.5 | 35 | 6.5 | 18 | 15 | 19 | 28 | 11 | 17 | 15 | 8.4 |

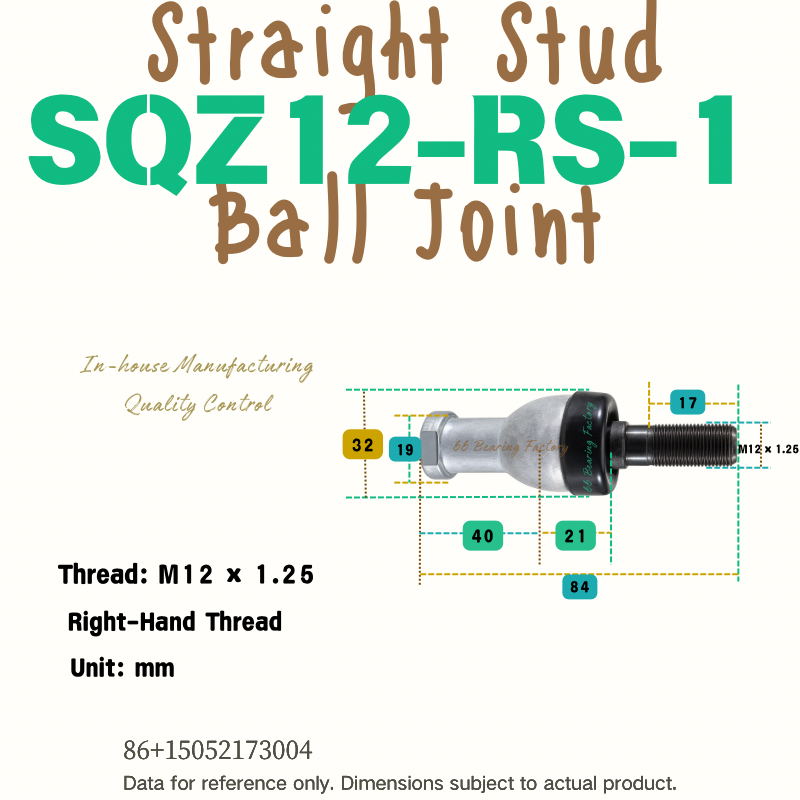

| SQZ12-RS-1 | 0.18 | 12 | M12×1.25 | 17 | 32 | 17 | 21 | 84 | 40 | 6.5 | 20 | 17.5 | 22 | 32 | 15 | 19 | 15 | 11 |

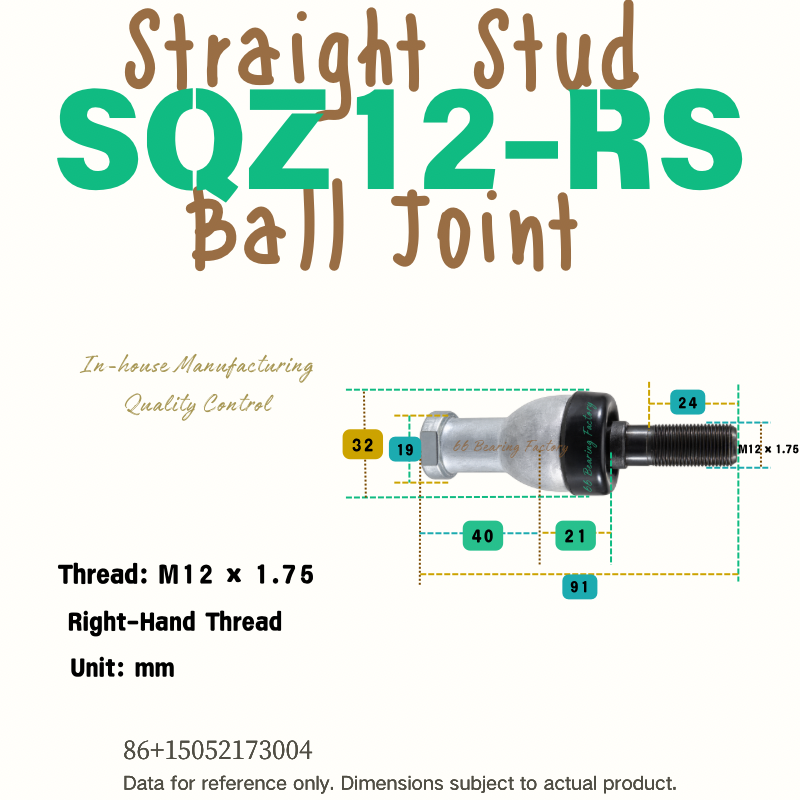

| SQZ12-RS | 0.18 | 12 | M12×1.75 | 17 | 32 | 24 | 21 | 91 | 40 | 6.5 | 20 | 17.5 | 22 | 32 | 15 | 19 | 15 | 11 |

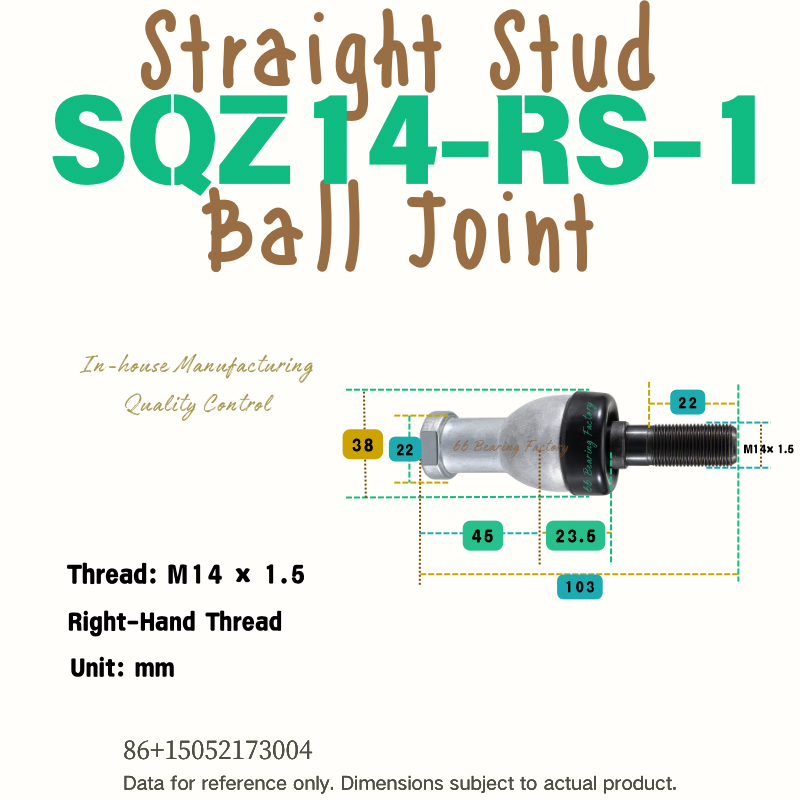

| SQZ14-RS-1 | 0.27 | 14 | M14×1.5 | 19 | 38 | 22 | 23.5 | 103 | 45 | 8 | 25 | 20 | 25 | 36 | 17 | 22 | 11 | 15 |
| SQZ14-RS | 0.27 | 14 | M14×2 | 19 | 38 | 28 | 23.5 | 109 | 45 | 8 | 25 | 20 | 25 | 36 | 17 | 22 | 11 | 15 |

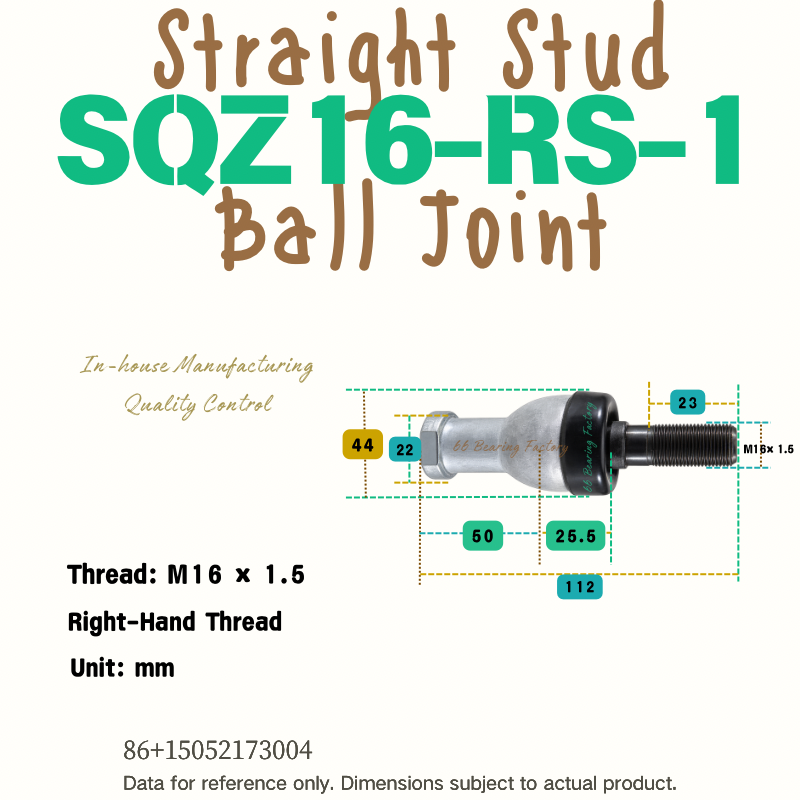

| SQZ16-RS-1 | 0.36 | 16 | M16×1.5 | 22 | 44 | 23 | 25.5 | 112 | 50 | 8 | 27 | 22 | 27 | 40 | 19 | 22 | 11 | 15 |

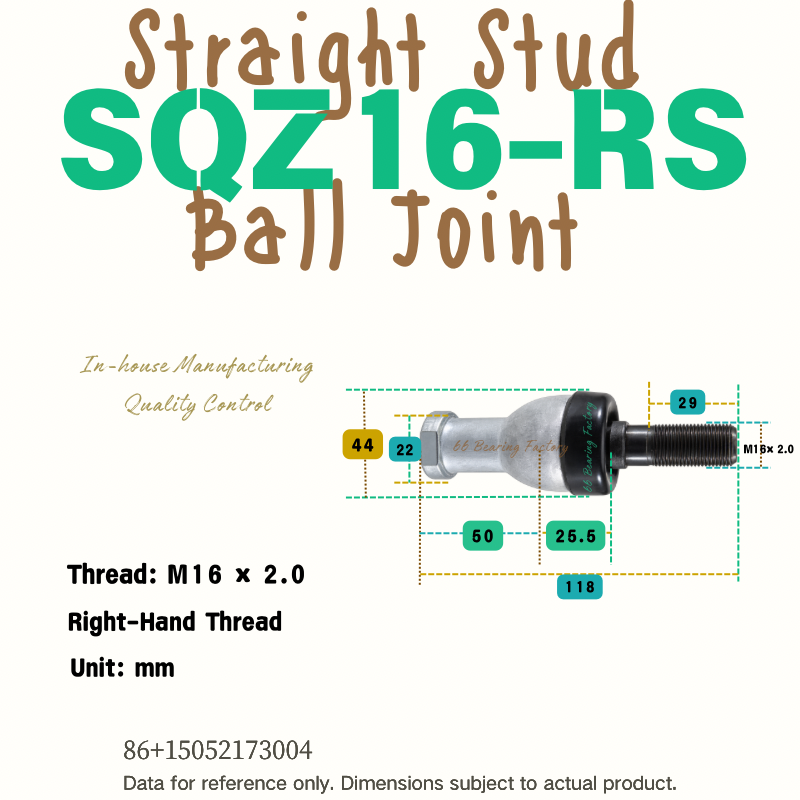

| SQZ16-RS | 0.36 | 16 | M16×2 | 22 | 44 | 29 | 25.5 | 118 | 50 | 8 | 27 | 22 | 27 | 40 | 19 | 22 | 11 | 15 |
| SQZ18-RS | 0.54 | 18 | M18×1.5 | 23 | 45 | 25 | 31 | 130.5 | 58 | 10 | 32 | 25 | 31 | 45 | 20 | 27 | 11 | 19 |

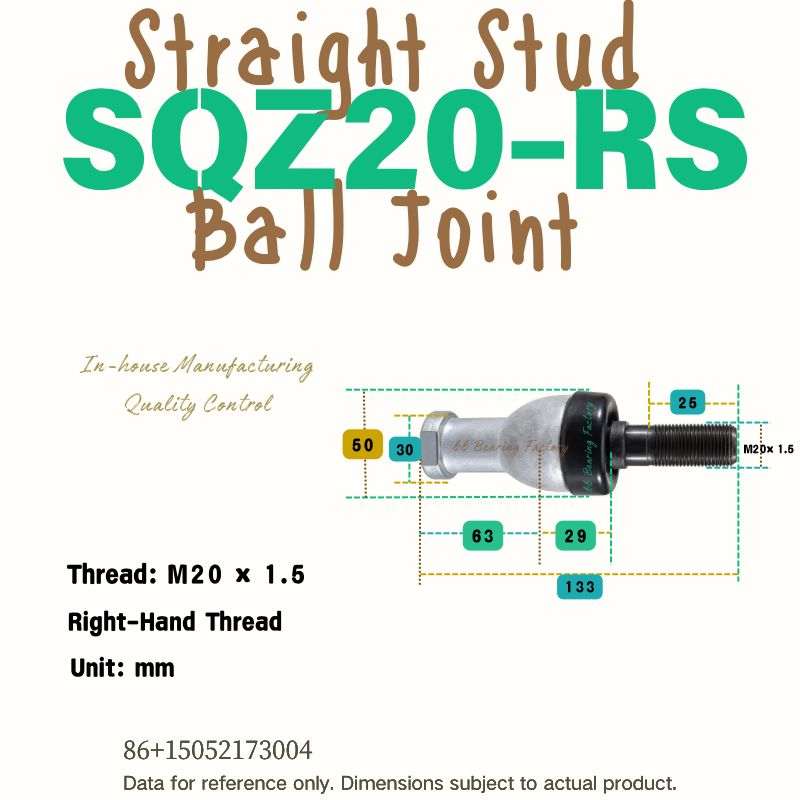

| SQZ20-RS | 0.57 | 20 | M20×1.5 | 27 | 50 | 25 | 29 | 133 | 63 | 10 | 38 | 27.5 | 34 | 45 | 24 | 30 | 7.5 | 19 |

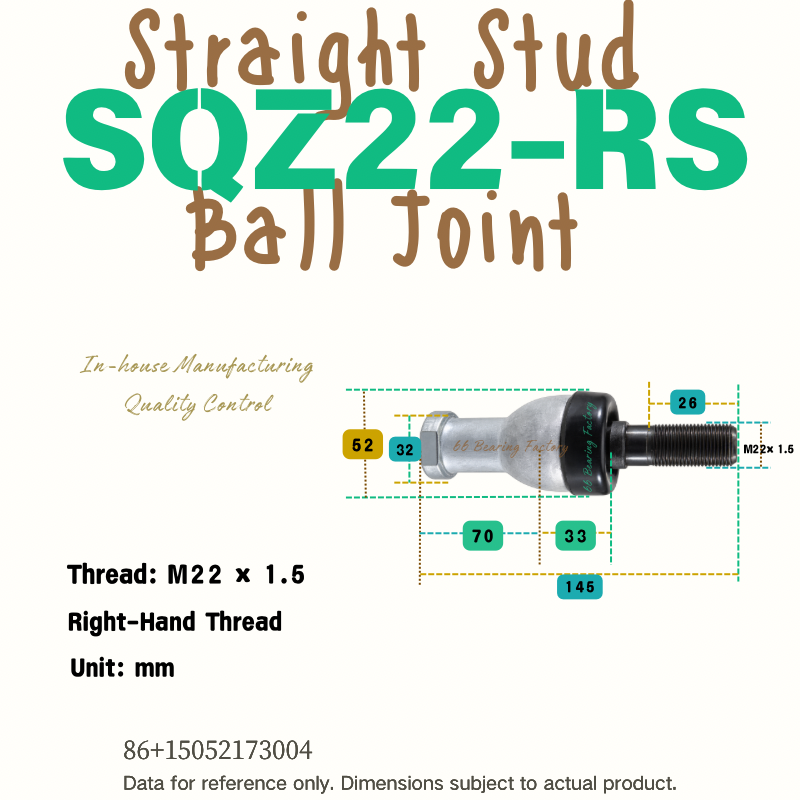

| SQZ22-RS | 0.76 | 22 | M22×1.5 | 27 | 52 | 26 | 33 | 145 | 70 | 12 | 43 | 30 | 37 | 50 | 24 | 32 | 7.5 | 23 |
Send us the model number, quantity and destination. We’ll provide detailed dimensions, pricing and production information.
